IRH-E Infrared Electric Heaters

Celmec Heatray IRH-E

High-intensity radiant heaters providing instant, soft glowing warmth within a compact & finely detailed design.

heatray - IRH-EOur heatray IRH-E range utilises the latest infrared lamp technology providing a noticeable reduction in brightness with a pleasing warmer orange tone, while maintaining maximum efficiency and instant heat performance. Single heater capacities range from 1600-3200W with an optional 6 stage heat output remote control.

  • Superior Radiant Heat

    Instant, comfortable high-intensity warmth absorbed by people and objects without ‘warm-up’ period.

  • Latest Generation Lamps

    Our ‘Spectrum’ lamps offer all of the performance with minimal glare, producing 100% heat output with 98% less light.

  • Customised Control

    Remote control with 6 heat output settings, along with sensor & group ‘zone’ control options provide targeted heating only where and when desired.

  • Simple Installation & Easy Servicing

    Standard ceiling & wall mounting options to heights of 2.1–3.7m depending on model. Our ‘Quick Connect’ lamp replacement system simplifies the process without compromising its IP65 rating.

  • Discerning Aesthetics

    Refined frost matte finish along with highly resolved grille and cover plate details.

  • Designed For Protected Outdoors

    Withstand the elements with IP65 waterproof rating along with matching rain shield for exposed outdoor applications.

  • Powerfully Compact

    Highly efficient lamp & reflector technology deliver maximum power in a compact package.

  • Umbrella Integration

    Designed to be integrated with our Heatray Umbrella Systems for comprehensive outdoor weather protection and comfort.

sq-Tile-IRH-E
Product Model
Name
IRH-E
Main image
IRH-E
Diagrams
Sub model name

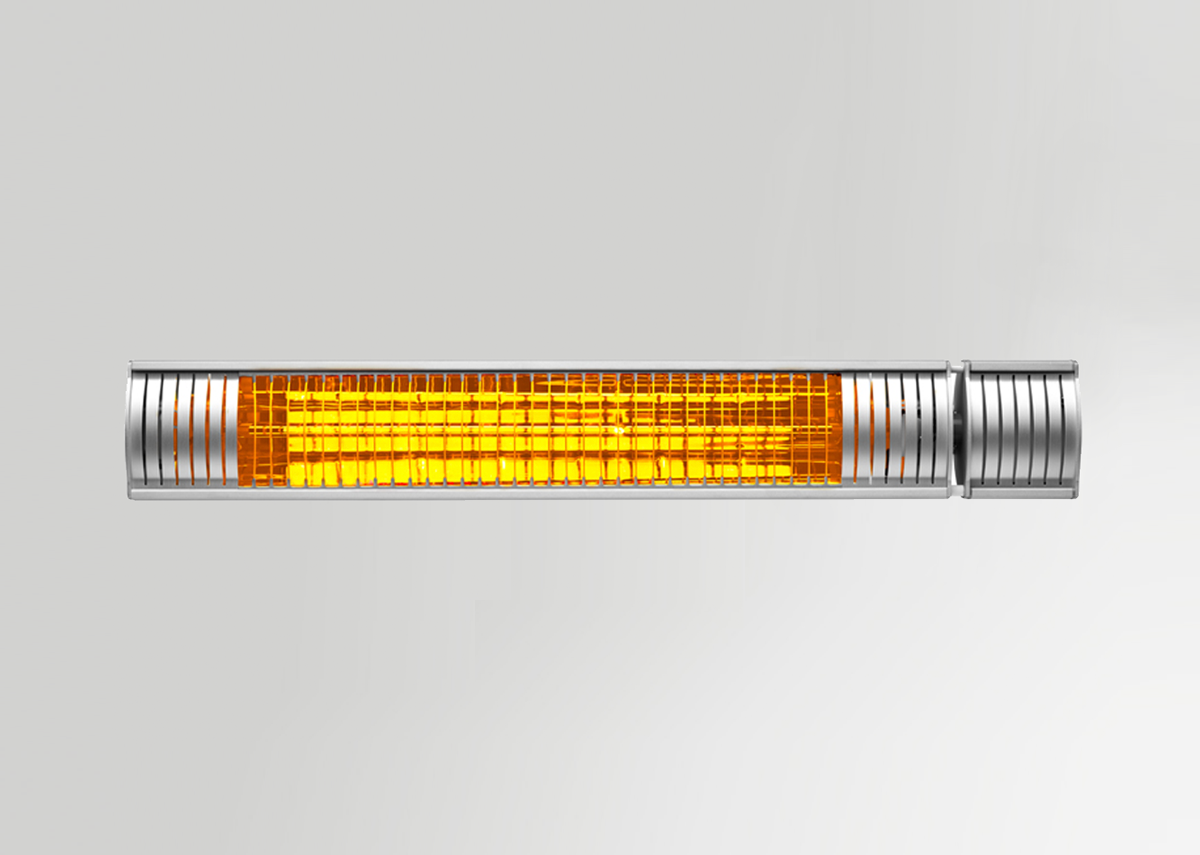

IRH-E 1600
Sub model note
1600 Watt heater
Sub model image
IRH-E 1600
Description
  • Available in Silver or Black
  • Size 675L x 100W x 75H.
  • Mounting height 2100-3000mm.
  • Coverage 2-8 sqm.
  • IP65 rated + custom Rain Shield available for exposed outdoor applications.
Sub model name
IRH-E 2000
Sub model note
2000 Watt heater
Sub model image
IRH-E 2000
Description
  • Available in Silver or Black
  • Size 675L x 100W x 75H.
  • Mounting height 2300-3200mm.
  • Coverage 3-10 sqm.
  • IP65 rated + custom Rain Shield available for exposed outdoor applications.
Sub model name

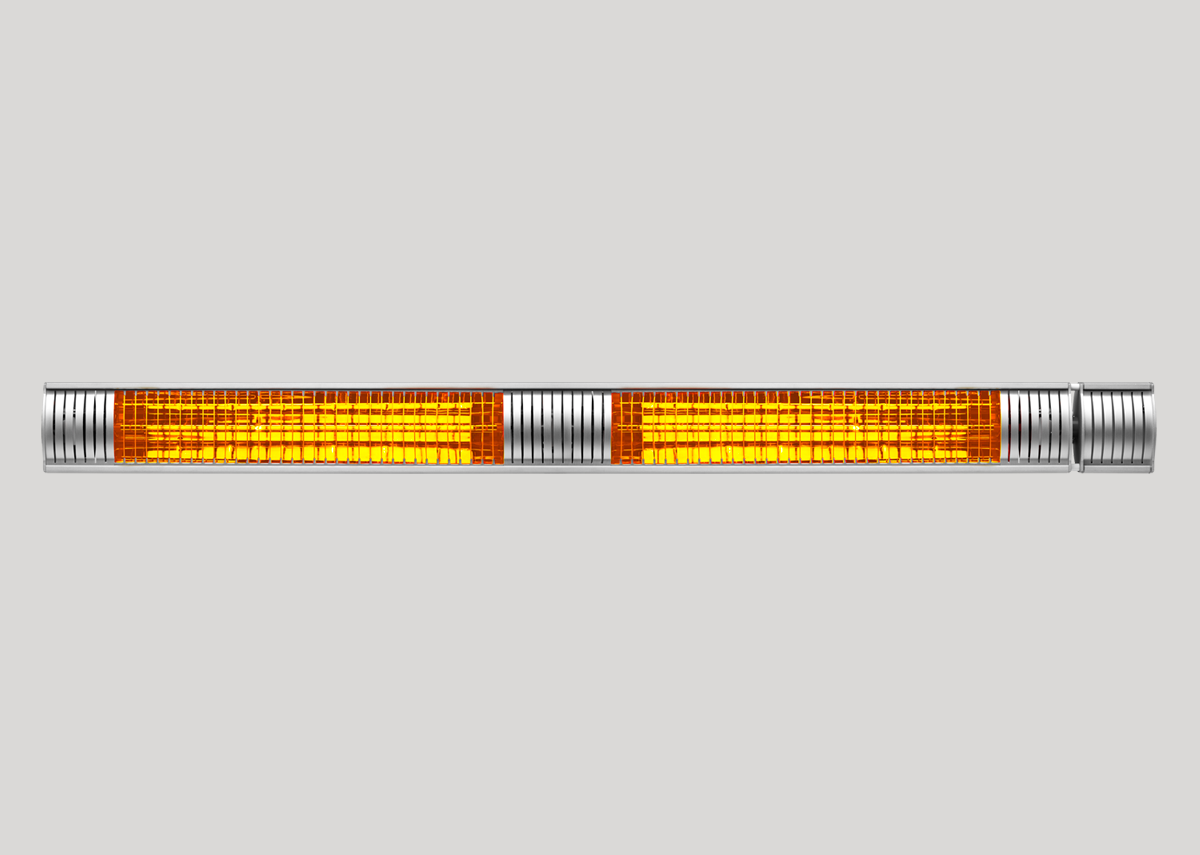

IRH-E 3200
Sub model note
3200 Watt heater
Sub model image
IRH-E 3200
Description
  • Available in Silver or Black
  • Size 1225L x 100W x 75H.
  • Mounting height 2700-3700mm.
  • Coverage 5-14 sqm.
  • IP65 rated + custom Rain Shield available for exposed outdoor applications.
Name
MOUNTING OPTIONS
Main image
MOUNTING OPTIONS
Diagrams
Sub model name

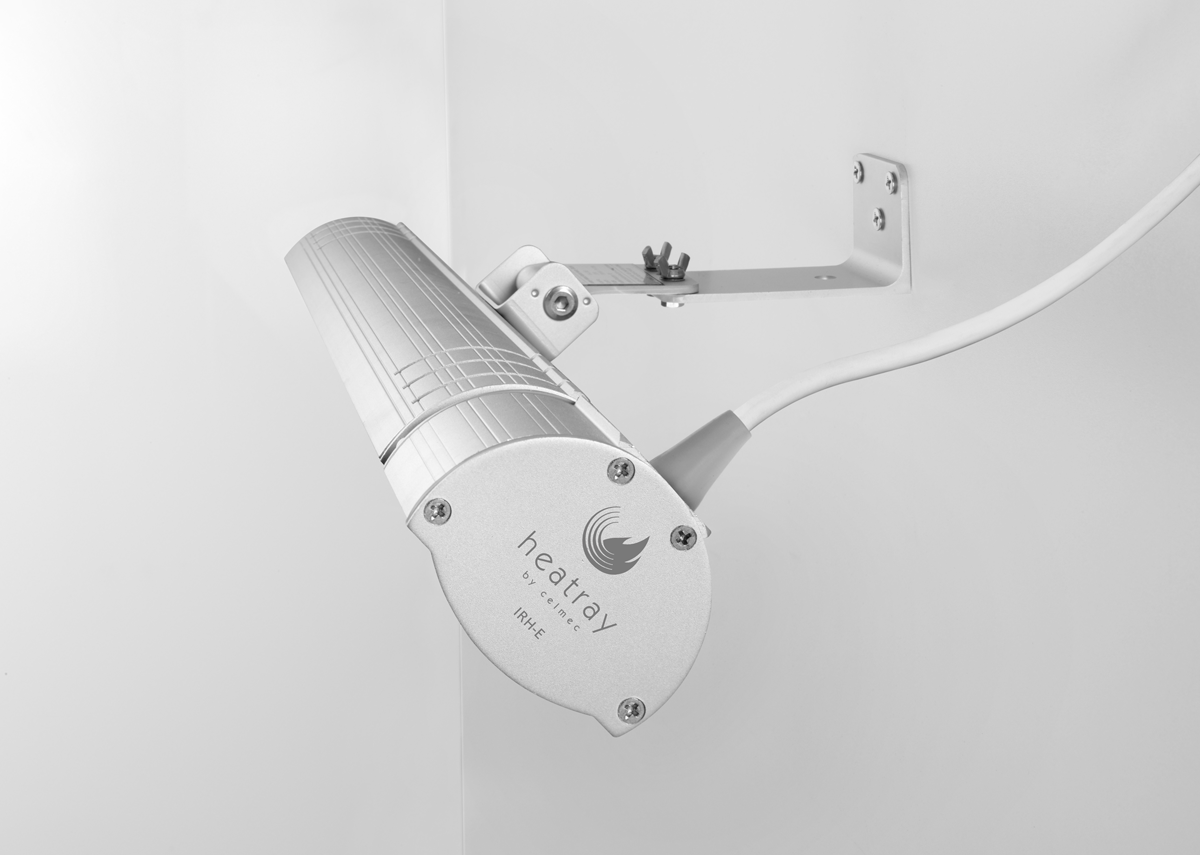

Wall Mount
Sub model note
Standard 170mm offset
Sub model image
Wall Mount
Description
  • 45° tilt angle
  • Forward clearance from flammables min. 1500mm.
  • Ceiling clearance from flammables min 300mm.
  • Rear of unit clearance from flammables min 160mm.
  • End of unit clearance from flammables min 600mm.
Sub model name

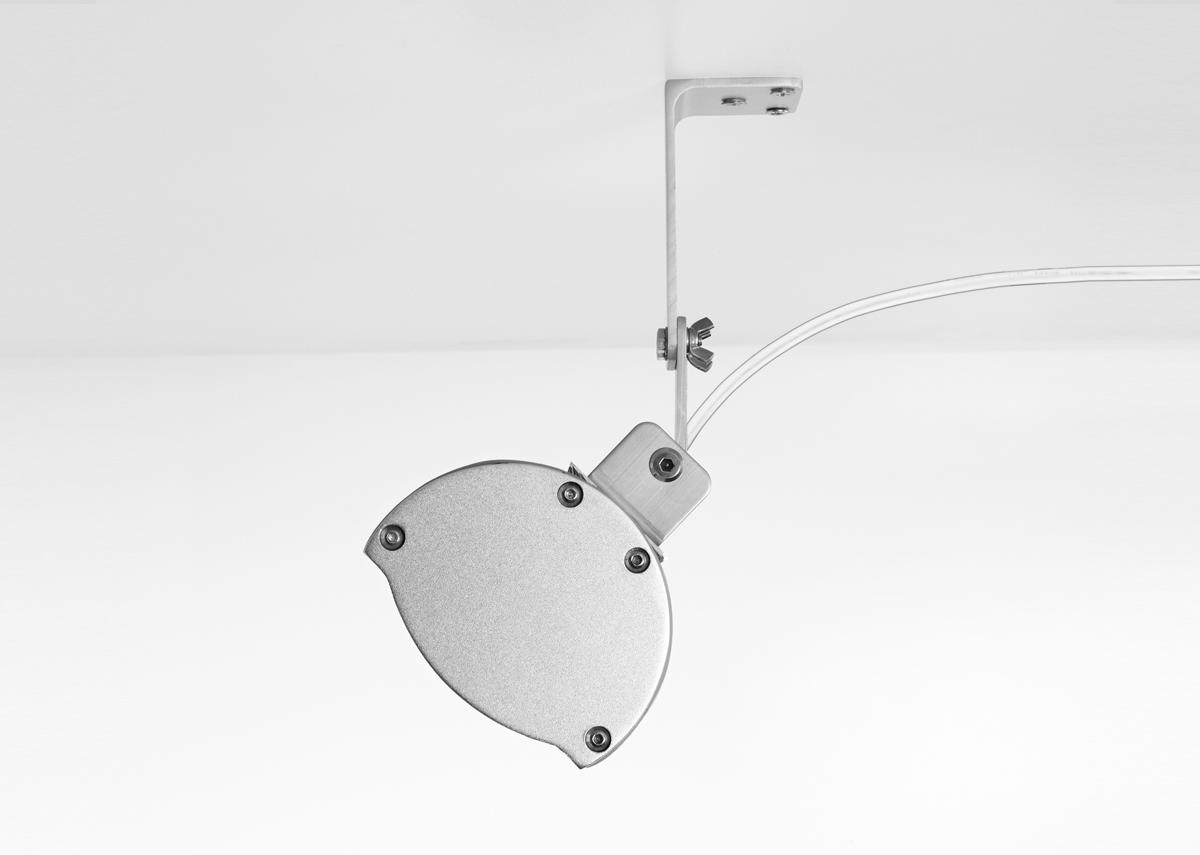

Ceiling Mount
Sub model note
Standard 300mm offset
Sub model image
Ceiling Mount
Description
  • 45° tilt angle
  • Forward clearance from flammables min. 1500mm.
  • Ceiling clearance from flammables min 300mm.
  • Rear of unit clearance from flammables min 160mm.
  • End of unit clearance from flammables min 600mm.
Name

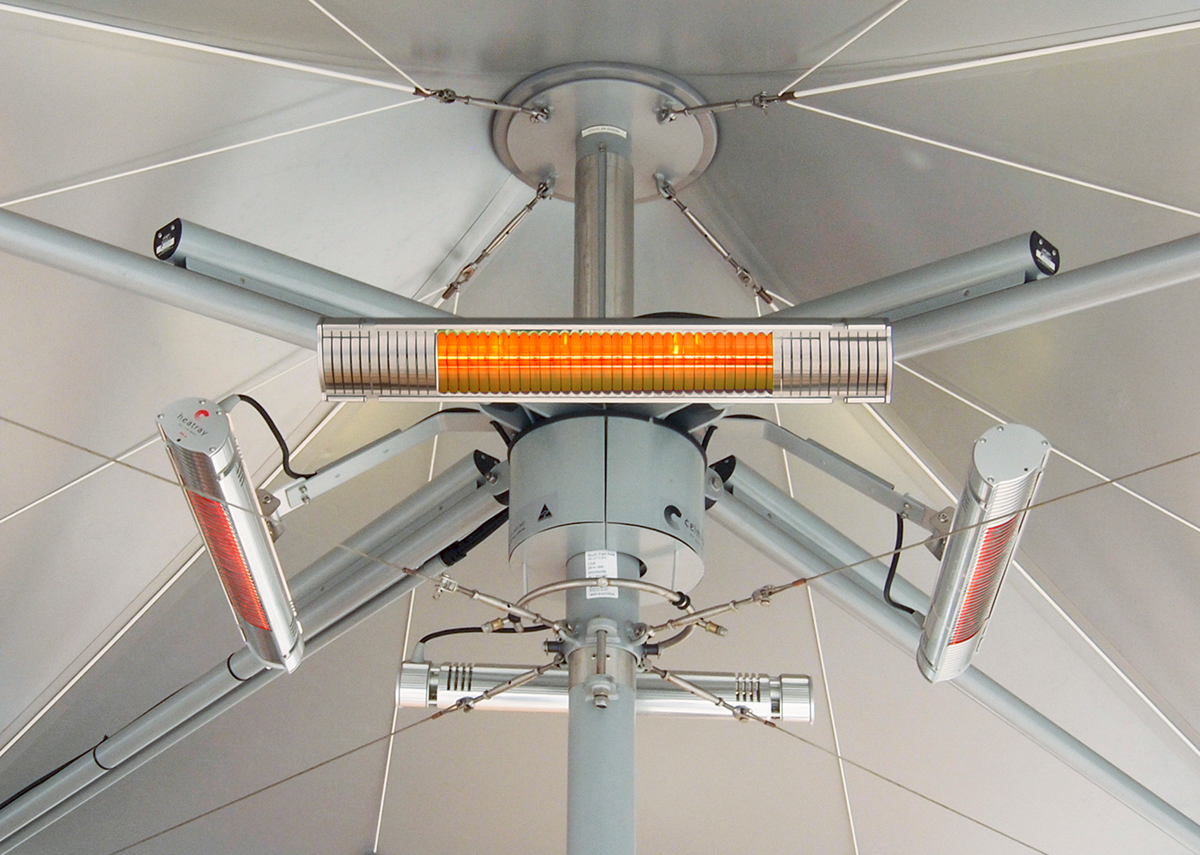

UMBRELLA INTEGRATION
Main image
UMBRELLA INTEGRATION
Diagrams
Sub model name
Square Umbrellas
Sub model note
4 IRH-E Units.
Sub model image
Square Umbrellas
Description
  • Dimensions 3180L x 3180W x 3350H (2300H under canopy clearance) to 5055L x 5055W x 3660H (2400H under canopy clearance).
  • 8 to 24 person capacity.
Sub model name

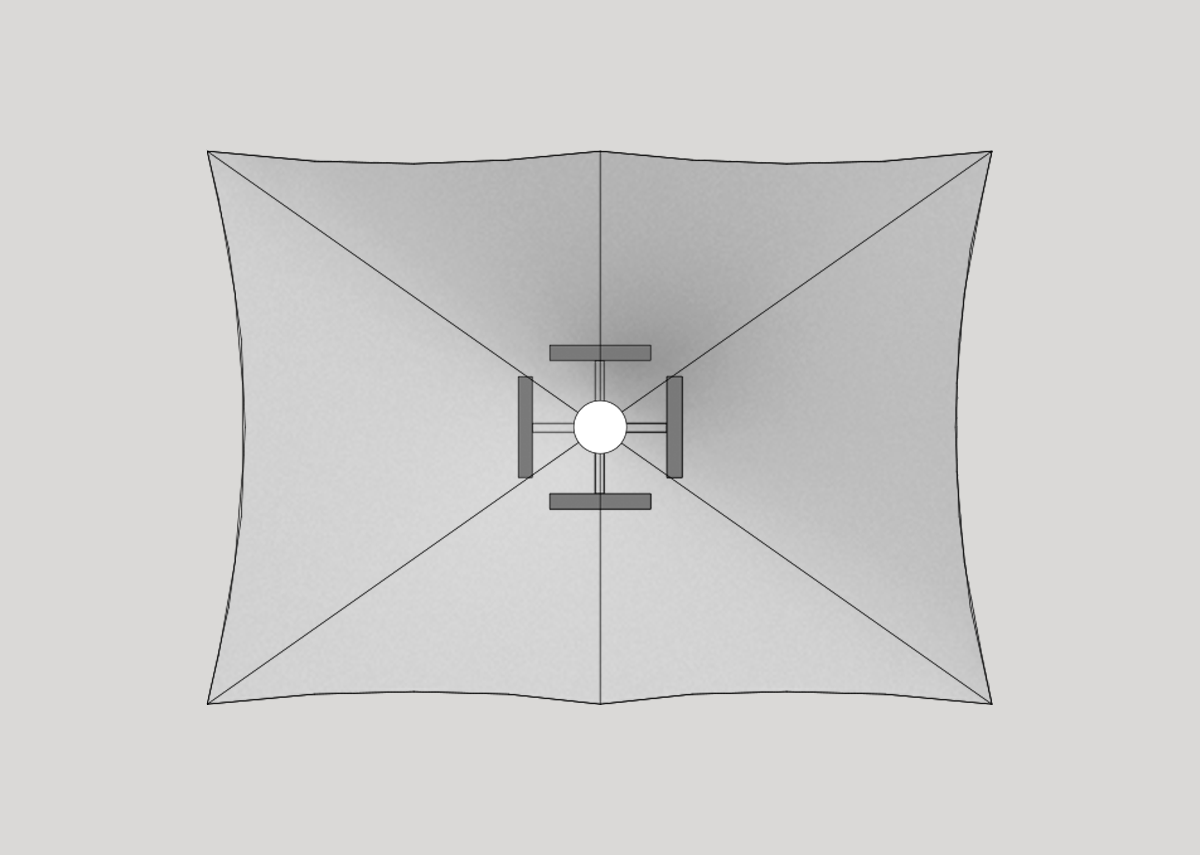

Rectangular Umbrellas
Sub model note
4 IRH-E Units
Sub model image
Rectangular Umbrellas
Description
  • Dimensions 4550L x 3180W x 3510H (2300H under canopy clearance) to 5300L x 3755W x 3605H (2300H under canopy clearance).
  • 16 to 18 person capacity.
Sub model name

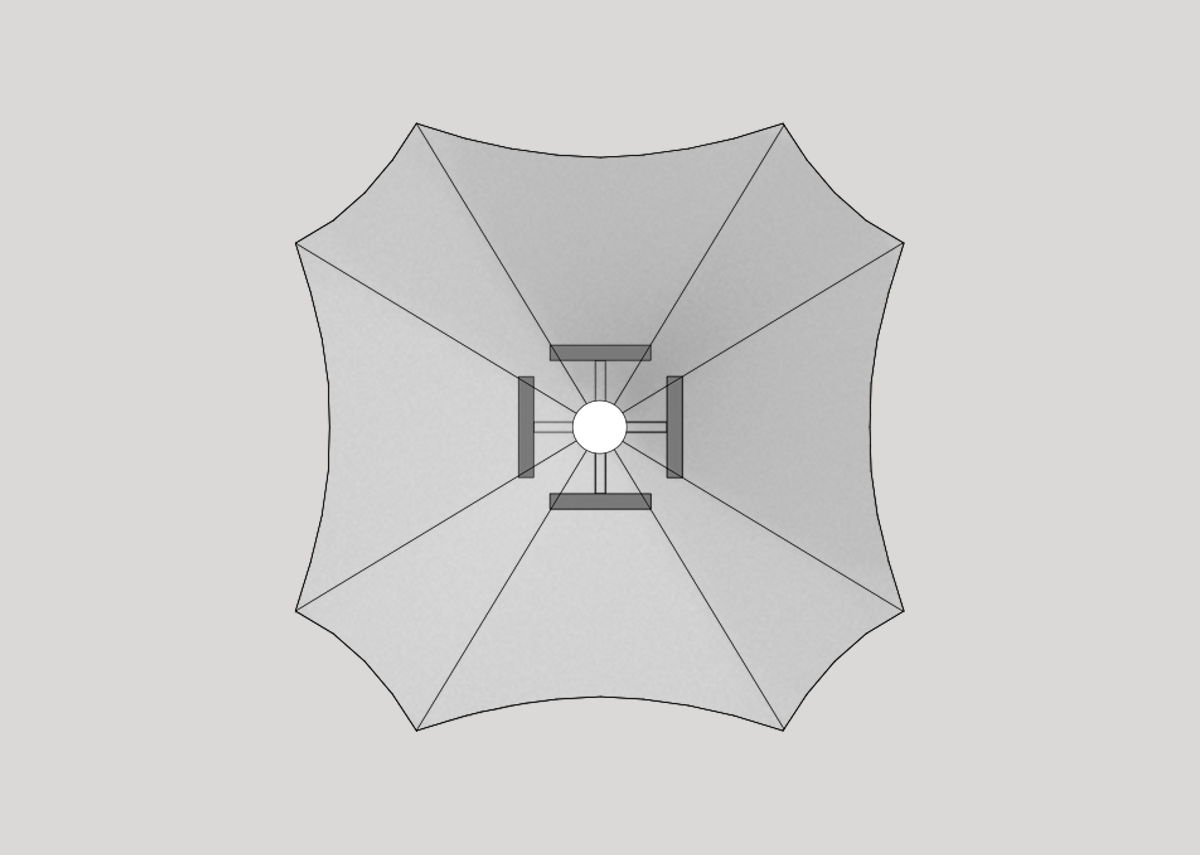

Truncated Square Umbrella
Sub model note
4 IRH-E Units
Sub model image
Truncated Square Umbrella
Description
  • Dimensions 4295L x 4295W x 3360H (2300H under canopy clearance).
  • 16-person capacity.
Name
CONTROL OPTIONS
Main image
CONTROL OPTIONS
Diagrams
Sub model name

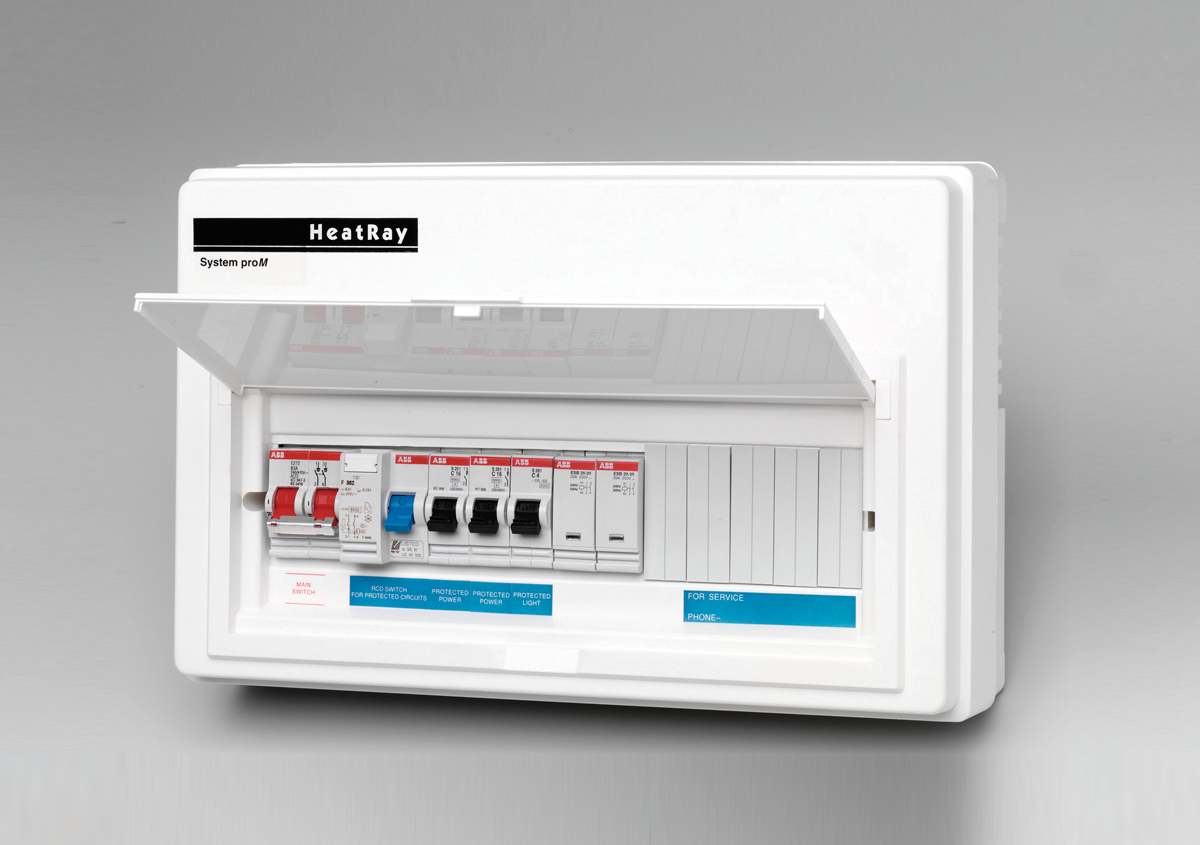

Control Module
Sub model note
Zone control of 2, 4 or 6 heaters
Sub model image
Control Module
Description
  • Dimensions 375W x 220H x 100D (1Ph).
  • Safety cut-out, circuit protection, low Amp on-off switching, two-zone control & separate lighting circuit.
  • Relays suitable for BMS control.
  • Optional motion sensors, run-on timers.
  • Optional 2Ph and 3Ph control modules available.
Name
SPECIAL APPLICATIONS
Main image
SPECIAL APPLICATIONS
Diagrams
Sub model name

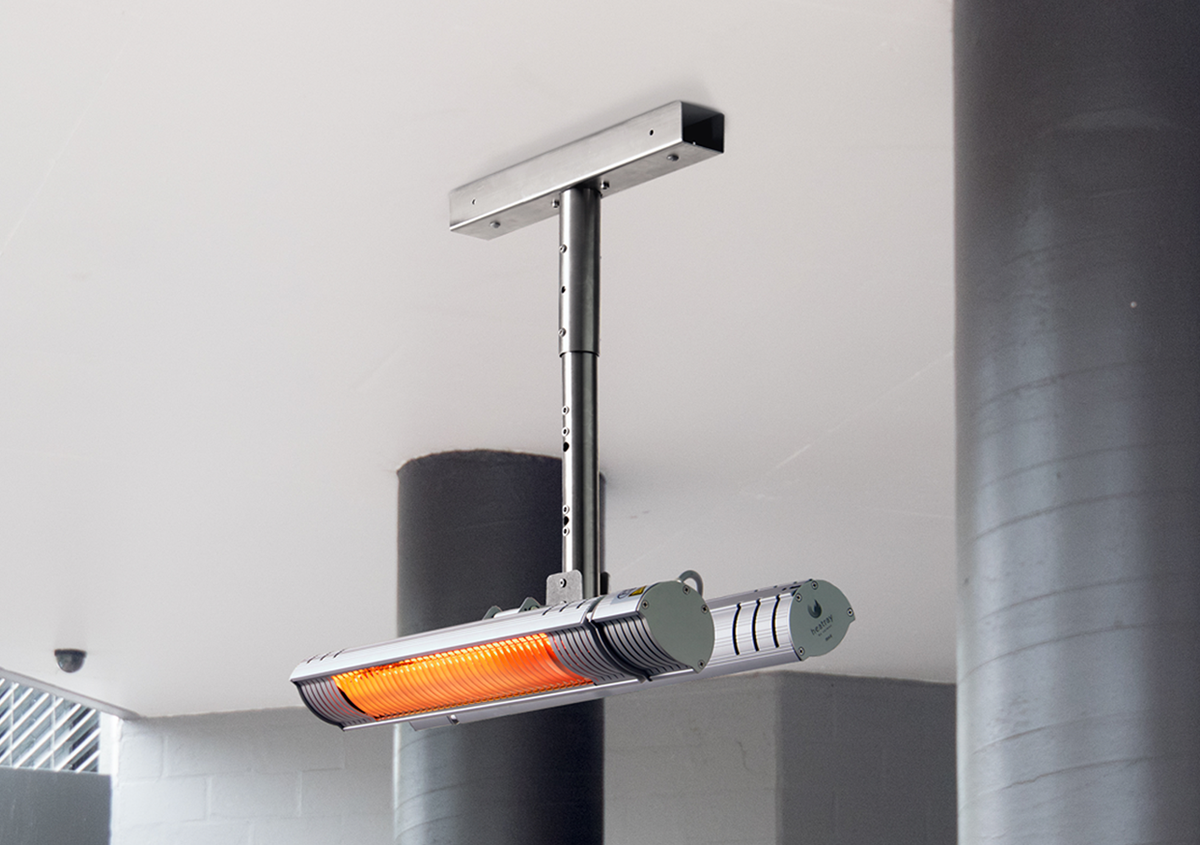

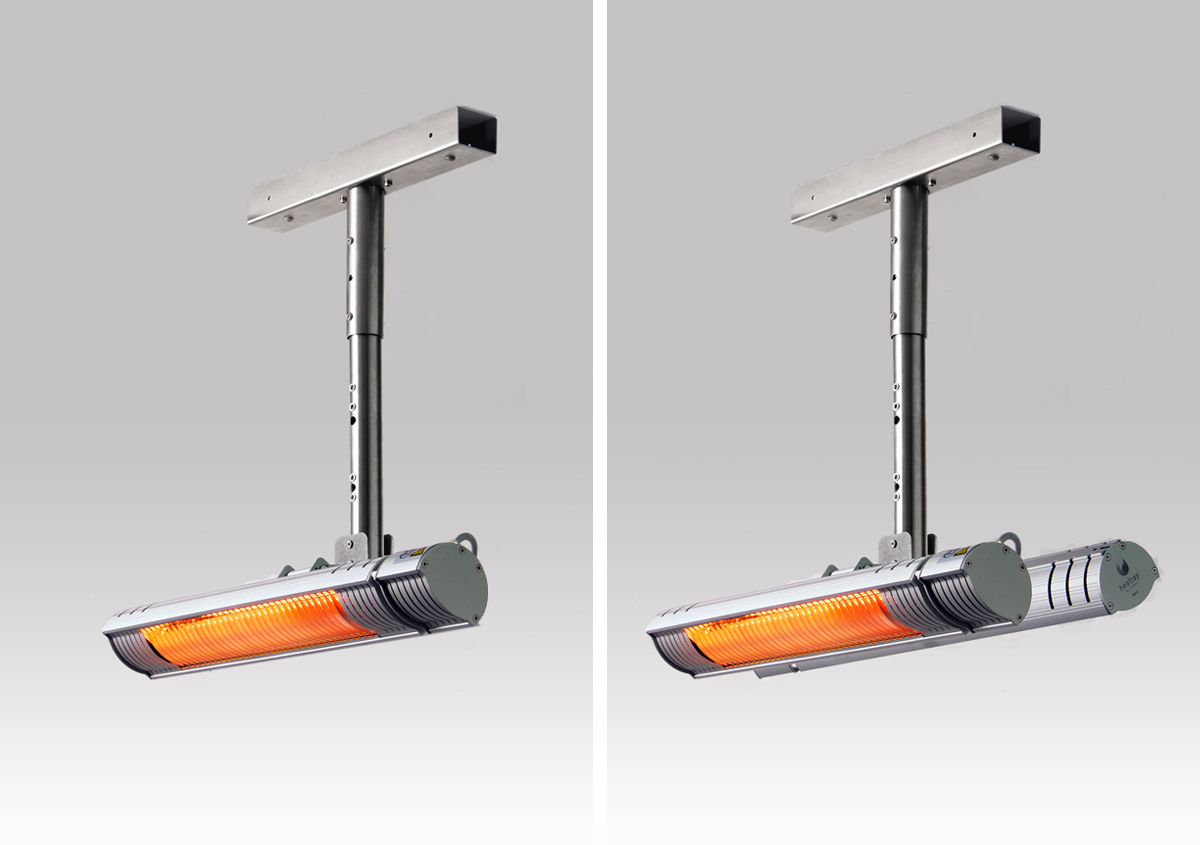

Ceiling Tube Suspension (CTS)
Sub model note
Adjustable
Sub model image
Adjustable Ceiling Tube Suspension (CTS)
Description
  • Single or dual mount back to back
  • Made from marine grade stainless Steel SAE 316 suitable for seaside use.
  • Concealed wiring. Ceiling drop 495-595mm.
Sub model name

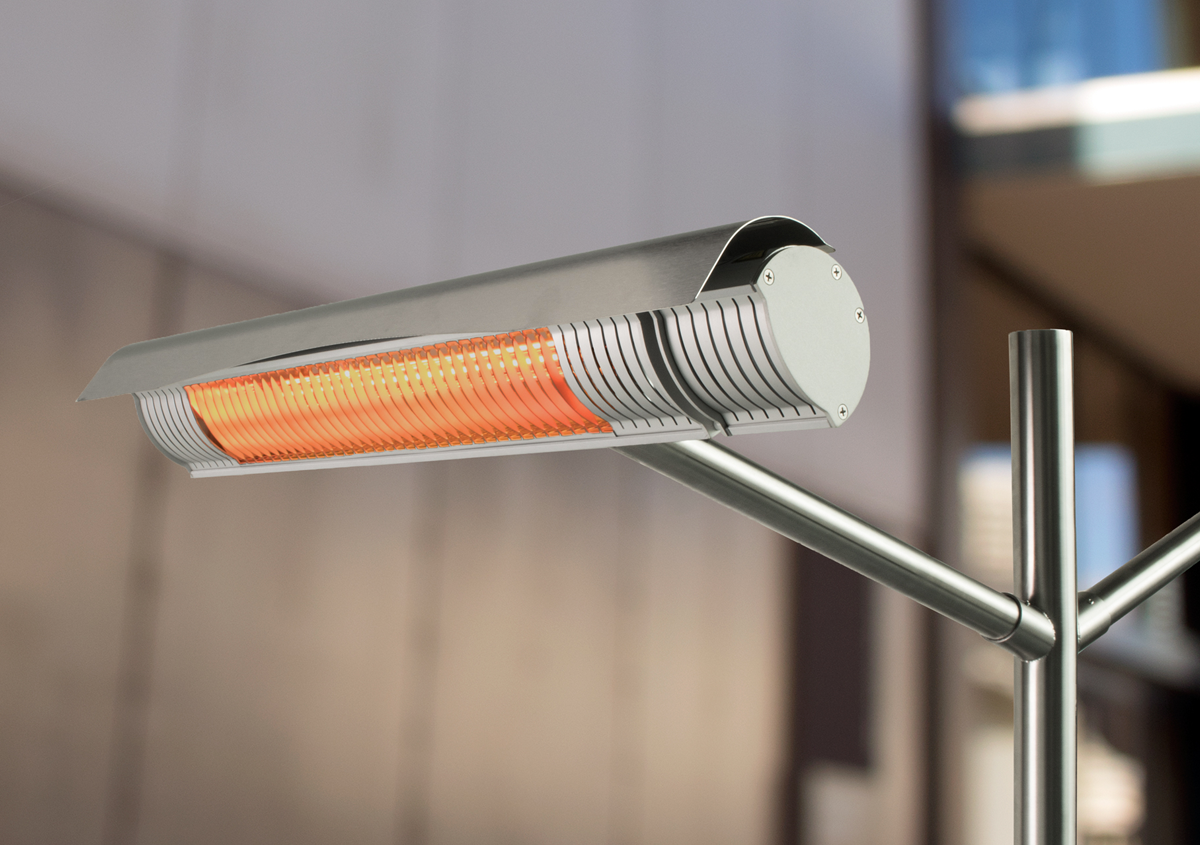

Column Heatray Stand (CHS)
Sub model note
Indoor & Outdoor
Sub model image
Column Heatray Stand (CHS)
Description
  • Made from marine grade stainless Steel SAE 316 suitable for seaside use.
  • Concealed wiring.
  • Dimensions 1070W x 1660D x 2340H (2050 clearance under arms).
